Exhaust amount | 232cc |
Output | 34.8HP |
Cylinder Bore/ Stroke | 46MM/35MM |
speed range | 1300-6500 RPM |

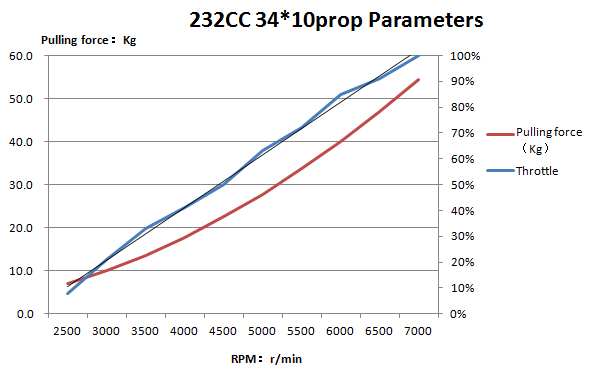

Pulling force | 56KG/1000 Meter altitude |
Cylinder arrangement | four boxer |
Fuel | Gasoline + 2T synthetic oil |
Lubrication Ratio | 25:1~30: 1(trial run) |
Compression Ratio | 7.8:1 |
Propeller Recommended | 34*10,34*8 32*10 32*8, 32*10 recommended |
Spark Plug | DLA CM6,Iridium |
Voltage | 6.6v-8.4v, 2 LiPo batteries recommended. |
Weight | Main engine: 5080g Exhaust pipe: 258g Ignition: 180*2g standoffs: 22*4g |
Customization | According to Customer’s need and specifications |
Others |
This engine is mainly used for fixed-wing with take-off weights (including Gasoline) not more than 40 KGS. Its crankcase, crankshaft, central screws are all made of domestic high-performance materials by CNC processing method. With beautiful appearance, high-precision, drop resistance, fatigue resistance, good stability, strong power performance, 2 cylinders with independent ignition and independent fuel feeding. It is the best choice for aircraft or model with 5-meter wings. Our company will be grateful for your valuable guidance and advice!!
